PB Gear
Series: PB 100
| GEARBOX SERIES: PB 100 | |||||||||||||
|
TYPE
|
REDUCTION
|

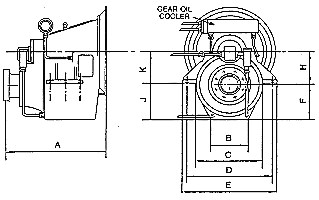

DIMENSIONS, mm
|
Max. input torque N.m
|
Flywheel adapter
|
Weigth kg
|
||||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
H
|
J
|
K
|
|||||
|
PB130
|
3,0:1
|
783 | 320 | 550 | 680 | 760 | 300 | 260 | 244 | 316 |
1960
|
SAE 0 SAE 1
|
650
|
|
PB113
|
1,3:1
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
1960
|
SAE 0 SAE 1
|
650
|
|
PB139
|
3,9:1
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
1660
|
SAE 0 SAE 1
|
650
|
|
PB146
|
4,6:1
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
1592
|
SAE 0 SAE 1
|
650
|
|
PB149
|
4,9:1
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
1592
|
SAE 0 SAE 1
|
650
|
|
PB153
|
5,3:1
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
1406
|
SAE 0 SAE 1
|
650
|
